- Size: 10~1000
- Place of Origin: Shandong, China
- Brand Name: AOBO

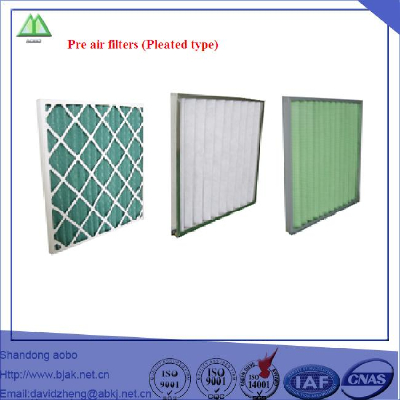

- Model Number: Pre air filters
- Weight: 2.000 kg
Features
Frame: Paper, Aluminum
Media: Non-woven reinforced cotton &synthetic media
Fire retardant grade: UL-2 listed. (UL 900)
Humidity: <= 100% RH
Recommended Max. Final Pressure drop: <= 225 Pa
Applications
Pre filters for commercial & industrial AHU.
Advantages
7 pleats/feet, 40% higher than normal product
With holding frame, very strong structure
Customer can replace the material very easy by themselves, the holder and frame can be recycled
Washable, Can be reused when necessary
Standard specification
Model | Outside Dimensions(mm) | Rated air flow(m3/h) | Initial resistance(Pa) | Efficiency(class) | Filter media | |
| 295×295×10/20mm 12 ″×12 ″×1/2 ″/1 ″ | 800m3/h | 25Pa | 40% weight | G1 G2 G3 | Non-woven reinforced cotton & synthetic media |
| 495×295×10/20mm 20 ″×12 ″×1/2 ″/1 ″ | 1300m3/h | ||||
| 495×495×10/20mm 20 ″×20 ″×1/2 ″/1 ″ | 2200m3/h | ||||
| 595×295×10/20mm 24 ″×12 ″×1/2 ″/1 ″ | 1600m3/h | ||||
| 595×295×10/20mm 24 ″×12 ″×1/2 ″/1 ″ | 1600m3/h | ||||
| 595×595×10/20mm 24 ″×24 ″×1/2 ″/1 ″ | 1600m3/h | ||||
*According to user requirements to customize different specifications and types of filter
Contact person: Mr. David Zheng
Shandong Aobo Environmental Protection Technology Co., Ltd.
Office Addr.: Room 8210, Qilinjingge Business Building, No.149 Songjiazhuang, Fengtai District, Beiing, China
Head Addr.: Wucheng Economic Development Zone, Dezhou, Shandong, China
Phone & Whatsapp: 86- 155 1063 9016
