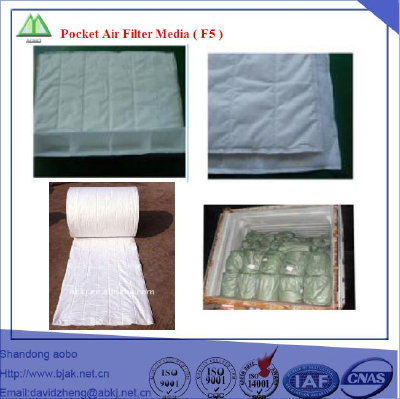

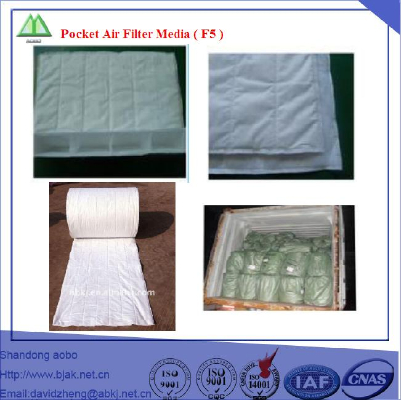

F5 pocket filter
Features
Type: Multi pockets filter
Media: F5 Synthetic fiber
Frame: Galvanized steel/Aluminum/ABS
Recommended final pressure drop: 450Pa
Temperature: 90ºC maximum in continuous service
Applications
The main filter of ventilation system
Advantages
Multilayer composite melt-blown materials
Material is 40% deeper than normal product
"V" shaped filter bag, filter material is utilized 100% totally
All edges have seal processed
The integration design of the inside frame increase the overall structural strength and minimize the pressure drop
The metal edge of the inside frame rolled to be smoothly shape, make the maintenance operation more safely
Standard specification
Model | Outside Dimensions(mm) | Rated air flow(m3/h) | Initial resistance(Pa) | Efficiency(class) | Filter media (Color) | Pockets |
| 495×295×500mm 20 ″×12 ″×20 ″ | 1000m3/h | 50Pa F5 55Pa F6 60Pa F7 65Pa F8 | 40-50% F5 60-70% F6 75-85% F7 85-95% F8 | White F5 Green F6 Pink F7 Yellow F8 | 5 |
| 495×495×500mm 20 ″×20 ″×20 ″ | 1800m3/h | 5 | |||
| 595×295×500mm 24 ″×12 ″×20 ″ | 1300m3/h | 6 | |||
| 595×495×500mm 24 ″×20 ″×20 ″ | 2200m3/h | 6 | |||
| 595×595×500mm 24 ″×24 ″×20 ″ | 2600m3/h | 8 | |||
| 495×295×600mm 20 ″×12 ″×24 ″ | 1200m3/h | 5 | |||
| 495×495×600mm 20 ″×20 ″×24 ″ | 2200 | 5 | |||
| 595×295×600mm 24 ″×12 ″×24 ″ | 1600 | 6 | |||
| 595×495×600mm 24 ″×20 ″×24 ″ | 2700 | 6 | |||
| 595×595×600mm 24 ″×24 ″×24 ″ | 3200 | 8 |
*According to user requirements to customize different specifications and types of filter
