- Size: 10~1000
- Place of Origin: Shandong, China
- Brand Name: AOBO
- Model Number: High-temperature air filter
- Weight: 2.000 kg
Specification

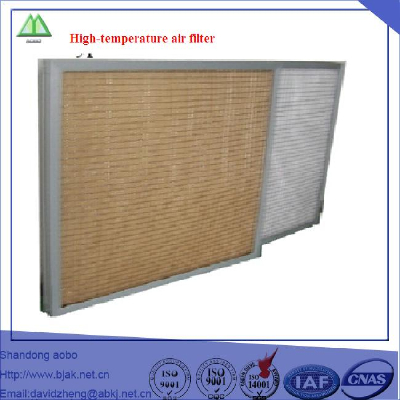

Type: Panel filter for high temperature
Media: Glass fiber.
Frame: Aluminum.
Recommended final pressure drop: 250Pa.
Application
Protection of ultra-clean processes at high-temperatures , such as spraying oven, sterilization tunnel
Advantages
High quality glass fiber filter material
Double side retainers with a super fine stainless steel wire mesh in the downstream, ensure the fiber will not fall off
Concave aluminum design, improve the overall structural strength
Ultra-light, thickness is 25mm
High temperature resistant (up to 250ºC)
Standard specification
Model | Outside Dimensions(mm) | Rated air flow(m3/h) | Initial resistance(Pa) | Efficiency(class) | Filter media |
| 500×250×25mm 20 ″×10 ″×1 ″ | 1500m3/h | 25Pa | G3
| Glass fiber |
| 500 ×500 ×25mm 20 ″×20 ″×1 ″ | 3000m3/h | |||
| 595×595×25mm 24 ″×24 ″×1 ″ | 4200m3/h |
*According to user requirements to customize different specifications and types of filter
