- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 10~1000
- Place of Origin: Shandong, China
- Brand Name: AOBO
- Model Number: Aramid Filter Cloth For High Temperature with coating
- Weight: 1.000 kg
High Temperature Materials

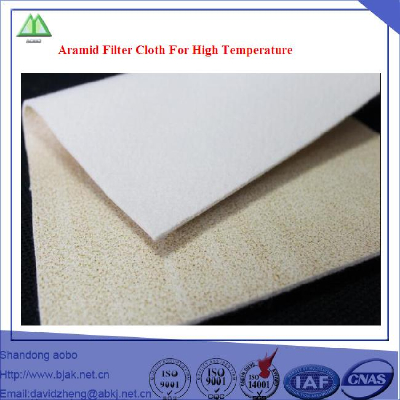

Nomex Felt (Aramid)
operation temperature: 400°F/205 ℃
Maximum (short time) operation temperature: 425°F/220 ℃
Supports combustion: No
Biological resistance (bacteria, mildew): No Effect
Resistance to alkalis: Good
Resistance to mineral acids: Fair
Resistance to organic acids: Fair+
Resistance to oxidizing agents: Poor
Resistance to organic solvents: Good
Specifications:
Compositions | Metamax fiber | |
Weight (g/m2) | 500 | |
Thickness (mm) | 1.7 | |
Air permeability (m3/m2/min) | >800 | |
Tensile strength (N/5X20cm) | warp | >1200 |
weft | <35 | |
Tensile elongation (%) | warp | <55 |
weft | ||
Broken strength (Mpa/min) | 2.40 | |
Continuous working temperature(°C/°F) | 204/400 | |
Short time Working temperature(°C/°F) | 240/464 | |
Anti-acid | Medial | |
Anti-alkali | Excellent | |
Anti-abrasion | Excellent | |
The stability of water solution | Medial | |
Finishing treatment | Singeing, het-setting, calendaring | |
Coatings
Through the filter-active coating dust is already separated on the surface. In addition the anti-adhesive surface reduces the adhesive forces between the filter medium and dust cake.
Advantages
- Optimised cleaning
- Increased service life
- High separation efficiency
- PTFE-Coating, hydrophobic and oleophobic fibers, protection against acids and hydrolysis
Primary finish membrane, microporous foam coating, high separation efficiency, easy dust release, hydrophobic and oleophobic s
Heat Setting
Basically all needle felts at Shandong Aobo are heat-set.
The residual shrinkage is reduced to a minimum by means of an optimum combination of the decisive quality factors , such as temperature, dwell time and cooling phase.
The controlled process management during the cooling phase ensures that the filter bags will have excellent form stability even under most difficult conditions.
Quality-determining parameters
- Temperature
- Reaction time
- Cooling time
Thermal surface treatment
The surface of any needle felt influences the structure of the filter cake, its cleanability as well as pressure drop and the emission.
- Singed
Three different kinds of treatment are possible:
- smooth for adhesive and moist dust
- medium for universal treatments
- rough low agglomeration or fine dust
- Calendering
Through calendering a more compact fiber structure is achieved. This allows a more surface-active separation of dust with lower emission.
Protective Impregnation
- hydrophobic, oleophobic
This treatment makes it more difficult for moisture to penetrate into the needle felt. Thus the risk of excessive dust deposits and caking is reduced.
- Protection against acids and hydrolysis
Special impregnation based on TEFLON®. This treatment coats the fiber surface, thus providing it with the anti-adhesive character of a PTFE finish.
An oil- and water-repelling effect is produced, and the fibers are effectively protected against acid and hydrolysis attack.
- Active finish, hydrophobic
Special water-repellent treatment providing a high cleaning and separation efficiency.
Contact person: Mr. David Zheng
Shandong Aobo Environmental Protection Technology Co., Ltd.
Office Addr.: Room 8210, Qilinjingge Business Building, No.149 Songjiazhuang, Fengtai District, Beiing, China
Head Addr.: Wucheng Economic Development Zone, Dezhou, Shandong, China
Phone & Whatsapp: 86- 155 1063 9016
