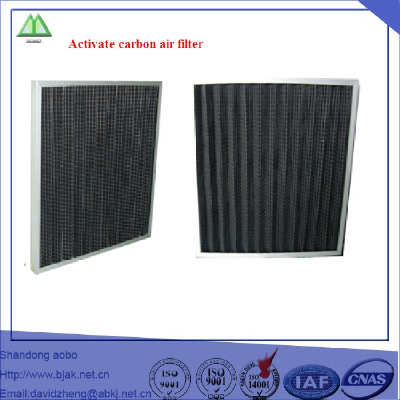

- Model Number: Activate carbon air filter
- Weight: 2.000 kg
Specification
Type: Pre filter for gas and particles removal
Media: Cementation type synthetic fiber
Frame: Rigid water resistant cardboard
Recommended final pressure drop:250pa
Temperature: 40ºC maximum in continuous service
Application:
Good performance of removing the peculiar smell and particles in air supply system, especially air circulation system. Such as office, airport where is large flow of people.
Advantages
Rigid Water resistant cardboard frame, which is from USA
Rigid Water resistant cardboard frame, which is from USA
Unique tapered radial Pleat design, get the lower pressure drop
Double-layer non-woven with active carbon inside, realize the double filtration of dust and the smell
Can be used to upgrade an existing configuration at a low cost
Waste filter is easy to burn, which is beneficial to environmental protection.
Standard specification
Model | Outside Dimensions(mm) | Rated air flow(m3/h) | Initial resistance(Pa) | Efficiency(class) | Filter media |
| 295×295×46mm 12 ″×12 ″×13/4 ″ | 800m3/h | 40Pa | 80% weight
| Cementation type synthetic fiber |
| 495×295×46mm 20 ″×12 ″×13/4 ″ | 1300m3/h | |||
| 495×495×46mm 20 ″×20 ″×13/4 ″ | 2200m3/h | |||
| 595×295×46mm 24 ″×12 ″×13/4 ″ | 1600m3/h | |||
| 595×295×46mm 24 ″×12 ″×13/4 ″ | 2700m3/h | |||
| 595×595×46mm 24 ″×24 ″×13/4 ″ | 3200m3/h |
*According to user requirements to customize different specifications and types of filter
